E2S AB105RTH 声光报警器

2021-07-30

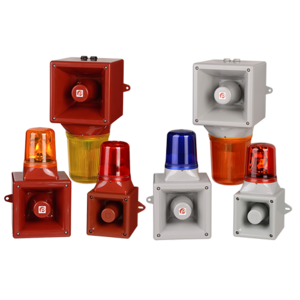

E2S AB105RTH Alarm Horn Sounder & Rotating Beacon 声光报警器

E2S AB105RTH 将紧凑型高输出 113dB(A) 报警发声器与强大的 25W 卤素旋转信标相结合。具有 64 个警报音频率和 4 个远程激活阶段/通道。坚固的阻燃外壳中的低电流消耗和高 SPL 确保 AB105RTH 适用于所有通用信号应用。警报喇叭发声器和旋转卤素灯可以从单个或单独的电源连接，以便同时或独立操作。

• 多发声系统自动同步
• 连续评级
• 不锈钢固定件
• 可以使用外部接线片或内部固定位置安装单元
• 双 M20x1.5mm 螺纹电缆入口 – 提供适配器
• 重复的可插拔电缆终端 – A 类
• 用于监控电路的极化二极管
• 64 个警报音频率和 4 个远程激活的警报阶段
• 可提供自定义音调配置和频率
• 可以任何方向安装

Variable:	Identifier:	Description:
Product type:	AB105RTH	Combined alarm horn sounder & halogen rotating beacon
Voltage:	DC012 DC024 AC115 AC230	12Vdc (10-15Vdc) 20W 24Vdc (18-30Vdc) 20W 115Vac 50/60Hz 25W 230Vac 50/60Hz 25W
Back box/cable entries: [e]	A B	Back box with mounting lugs – 2 x M20x1.5mm entries Back box with mounting lugs – 2 × 1/2″NPT (adaptors)
Stopping plug material: [m]	A	ABS
Equip. tag/Duty label: [s]	0 1 2	No equip. tag or Duty label 316 (A4) St/St Equip. tag/Duty label Metalised Polyester Equip. tag/Duty label
Product version: [v]	A	RMRS, EAC, CE, UKCA
Product option: [o]	1 X Z	Standard product Custom configuration – contact E2S Custom alarm tone software – contact E2S
Enclosure: [x]	R G	Red (RAL 3000) Grey (RAL7038)
Lens colour: [y]	A B C G R Y	Amber Blue Clear Green Red Yellow

AB105RTHDC012AA0A1R/R
AB105RTHDC012AA1A1R/R
AB105RTHDC012AA2A1R/R
AB105RTHDC012BA0A1R/R
AB105RTHDC012BA1A1R/R
AB105RTHDC012BA2A1R/R
AB105RTHDC024AA0A1R/R
AB105RTHDC024AA1A1R/R
AB105RTHDC024AA2A1R/R
AB105RTHDC024BA0A1R/R
AB105RTHDC024BA1A1R/R
AB105RTHDC024BA2A1R/R
AB105RTHAC115AA0A1R/R
AB105RTHAC115AA1A1R/R
AB105RTHAC115AA2A1R/R
AB105RTHAC115BA0A1R/R
AB105RTHAC115BA1A1R/R
AB105RTHAC115BA2A1R/R
AB105RTHAC230AA0A1R/R
AB105RTHAC230AA1A1R/R
AB105RTHAC230AA2A1R/R
AB105RTHAC230BA0A1R/R
AB105RTHAC230BA1A1R/R
AB105RTHAC230BA2A1R/R
