E2S AB121RTH 声光报警器

2021-07-30

E2S AB121RTH Alarm Horn Sounder & Rotating Beacon 声光报警器

E2S AB121RTH 将重型 126dB(A) 警报发声器与强大的 40W 卤素旋转信标相结合。具有 64 个警报音频率和 4 个远程激活阶段/通道。低电流消耗和高声压级在室外额定坚固外壳中确保 AB121RTH 适用于所有通用信号应用。AB121RTH 旨在承受恶劣的环境,采用新的可靠 D 类放大器技术,以低电流消耗提供卓越的声音输出。警报喇叭发声器和旋转卤素灯可以从单个或单独的电源连接,以便同时或独立操作。

  • 多发声系统自动同步
  • 连续评级
  • 不锈钢固定件
  • 可以使用外部接线片或内部固定位置安装单元
  • 双 M20 或 1/2″NPT 间隙电缆入口
  • 重复的可插拔电缆终端 – A 类
  • 用于监控电路的极化二极管
  • 64 个警报音频率和 4 个远程激活的警报阶段
  • 可提供自定义音调配置和频率
  • 可以任何方向安装
Variable: Identifier: Description:

Product type: AB121RTH Combined alarm horn sounder & halogen rotating beacon
Voltage: DC012
DC024
AC115
AC230
12Vdc (10-15Vdc) 35W
24Vdc (18-30Vdc) 35W
115Vac 50/60Hz 40W
230Vac 50/60Hz 40W
Back box/cable entries: [e] A Back box with mounting lugs – 2 x M20, 1/2″NPT clearance
Stopping plug material: [m] A ABS
Equip. tag/Duty label: [s] 0
1
2
No equip. tag or Duty label
316 (A4) St/St Equip. tag/Duty label
Metalised Polyester Equip. tag/Duty label
Product version:
[v]
A EAC, CE, UKCA
Product option:
[o]
1
X
Z
Standard product
Custom configuration – contact E2S
Custom alarm tone software – contact E2S
Enclosure: [x] R
G
Red (RAL 3000)
Grey (RAL7038)
Lens colour: [y] A
B
C
G
R
Y
Amber
Blue
Clear
Green
Red
Yellow

DC012AA0A1R/R
DC012AA1A1R/R
DC012AA2A1R/R
DC024AA0A1R/R
DC024AA1A1R/R
DC024AA2A1R/R
AC115AA0A1R/R
AC115AA1A1R/R
AC115AA2A1R/R
AC230AA0A1R/R
AC230AA1A1R/R
AC230AA2A1R/R

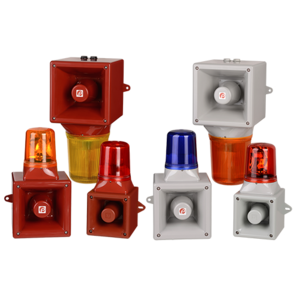

Product image
