E2S AL100X 声光报警器

2021-07-29

E2S AL100X Alarm Horn Sounder & Xenon Strobe Beacon 声光报警器

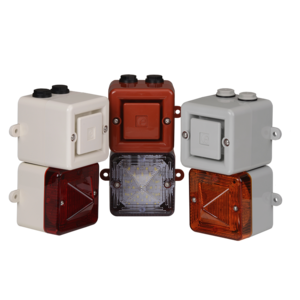

E2S AL100X 是一款紧凑型、高输出、110dB(A) 警报喇叭发声器，带有 5 焦耳、200cd 氙气闪光灯。CPR 投诉、EN54-3 和 EN54-23 测试和 UL/cUL 批准。具有 64 个警报音频率和 4 个远程激活阶段/通道。AL100X 配备了 A100 报警喇叭发声器和 L101X 氙气闪光灯。紧凑、坚固的外壳是所有通用信号应用的理想选择，包括消防、安全和过程控制。警报喇叭发声器和氙气频闪灯可以从单个或单独的电源连接，以便同时或独立操作。

• 自动同步
• 连续评级
• 双 M20 或 1/2″NPT 间隙电缆入口
• 重复的可插拔电缆终端 – A 类
• 防护等级 IP66 3R/13 型
• 64 个警报音频率和 4 个远程激活的警报阶段
• 可提供自定义音调配置和频率
• 二极管极化用于监控电路

Variable:	Identifier:	Description:
Product type:	AL100X	Combined alarm horn sounder & Xenon strobe
Voltage:	DC012 DC024 DC048 AC024 AC048 AC115 AC230	12Vdc (11.5-14Vdc) 24Vdc (20-28Vdc) 48Vdc (42-54Vdc) 24Vac 50/60Hz 48Vac 50/60Hz 115Vac 50/60Hz 230Vac 50/60Hz
Back box/cable entries: [e]	M	Back box with mounting lugs – 2 x M20, 1/2″NPT clearance
Stopping plug material: [m]	A	ABS
Equip. tag/Duty label: [s]	0 1 2	No equip. tag or Duty label 316 (A4) St/St Equip. tag/Duty label Metalised Polyester Equip. tag/Duty label
Product version: [v]	A	UL/cUL, CPR, RMRS, EAC, CE, UKCA
Product option: [o]	1 X Z	Standard product Custom configuration – contact E2S Custom alarm tone software – contact E2S
Enclosure: [x]	R G W	Red (RAL 3000) Grey (RAL7038) White
Lens colour: [y]	A B C G M R Y	Amber Blue Clear Green Magenta Red Yellow

AL100XDC012MA0A1R/R
AL100XDC012MA1A1R/R
AL100XDC012MA2A1R/R
AL100XDC024MA0A1R/R
AL100XDC024MA1A1R/R
AL100XDC024MA2A1R/R
AL100XDC048MA0A1R/R
AL100XDC048MA1A1R/R
AL100XDC048MA2A1R/R
AL100XAC024MA0A1R/R
AL100XAC024MA1A1R/R
AL100XAC024MA2A1R/R
AL100XAC048MA0A1R/R
AL100XAC048MA1A1R/R
AL100XAC048MA2A1R/R
AL100XAC115MA0A1R/R
AL100XAC115MA1A1R/R
AL100XAC115MA2A1R/R
AL100XAC230MA0A1R/R
AL100XAC230MA1A1R/R
AL100XAC230MA2A1R/R
