E2S IS-CP4-BG 手动呼叫按钮

2021-07-26

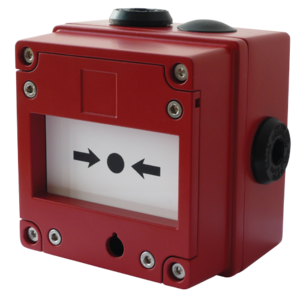

E2S IS-CP4-BG Break Glass Manual Call Point 手动呼叫按钮

E2S IS-CP4-BG 碎玻璃手动报警器专为最恶劣的环境而设计，并获准用于需要危险区域本质安全设备来控制火灾和气体报警系统的 0、1、2、21 和 22 区。SIL2 符合 IEC61508 (2010)。IS-CP4 系列的外壳采用防腐蚀、航海级、无铜 LM6 (A413) 铝制成，经过铬酸盐和粉末涂层处理。提供带和不带监控电阻的所有版本均通过 IECEx 和 ATEX 标准认证，并获得额外的 INMETRO 和 Ex EAC 认证。破碎玻璃元件具有安全膜，设计为可咬合，确保在激活过程中不会释放玻璃碎片。如果当地法规要求，锤子可作为附件提供。

• 可提供其他外壳颜色以满足特定要求
• 不锈钢升降翻板
• 金属化聚酯“关税”标签
• 串联和/或线尾电阻
• 提供破碎玻璃锤配件

Option:	Code :	Description:
Type:	IS-CP4A-BG IS-CP4B-BG	Type A – no end of line devices Type B – choice of end of line devices
Switch Type: [s]	S	SPCO/SPDT
Terminals: [t]	S	6 × 4mm² terminals
Lift flap: [l]	L N	Lift flap No lift flap
Cable Entry Type:[e]	A B C D E F G	3 x M20x1.5mm 2 × 1/2″ NPT – adaptors 2 × 3/4″ NPT – adaptors 2 x M25x1.5mm – adaptors 1 × 1/2″ NPT – adaptor 1 × 3/4″ NPT – adaptor 1 x M25x1.5mm – adaptor
Stopping plug material: [m]	B N P S	Brass Nylon Nickel Plated Brass Stainless Steel
Duty label / Equipment tag: [d]:	1 2 3 4 5 6 7	No Duty label, no Equip. tag Duty label Stainless Steel Duty label St/St + Equip. tag Duty label Metalised Polyester Duty label M. Poly. + Equip. tag Equip. tag only Special label requirement
Product version: [v]	A1	IECEx & ATEX approved
Enclosure colour: [x]	R, B, N, Y, V, S, K, M, Z	Red, Blue, Green, Yellow Red/White, Yellow/Black, Black, Magenta, Red/Black
E.O.L.Module: [Exxx] optional	ExxxR	Resistor value in Ohms e.g. E470R = 470 Ohm (only required for IS-CP4B type)
Series Module: [Sxxx] optional	SxxxR	Resistor value in Ohms e.g. E1K5R = 1.5K Ohm (only required for IS-CP4B type)
Spares:	SP70-0001 SP70-0040	Replacement glass elements (Pack of 50) IS-CP4-BG Test Key
Accessories:	SP65-0001-A2 SP65-0001-A4 SP65-0002-A2 SP65-0002-A4	Pole Mount Bracket Kit 2″ St/St A2 (304) Pole Mount Bracket Kit 2″ St/St A4 (316) Sunshade – St/St A2 (304) Sunshade – St/St A4 (316)

IS-CP4ABGSSL
IS-CP4ABGSSN
IS-CP4BBGSSL
IS-CP4BBGSSN
