E2S IS-CP4-PB 手动呼叫按钮

2021-07-26

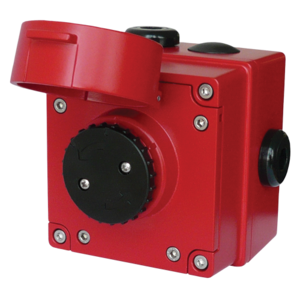

E2S IS-CP4-PB Push Button Manual Call Point 手动呼叫按钮

E2S IS-CP4-PB 按钮式手动报警器专为最恶劣的环境而设计，并获准用于需要危险区域本质安全设备来控制火灾和气体报警系统的 0、1、2、21 和 22 区。SIL2 符合 IEC61508 (2010)。IS-CP4 系列的外壳采用防腐蚀、航海级、无铜 LM6 (A413) 铝制成，经过铬酸盐和粉末涂层处理。提供带和不带监控电阻的所有版本均通过 IECEx 和 ATEX 标准认证，并获得额外的 INMETRO 和 Ex EAC 认证。按钮机构由弹簧加载盖保护，因此开关需要两个动作激活。IS-CP4-PB 可由用户通过旋转按钮重新设置。

Option:	Code:	Description:
Type:	IS-CP4A-PB IS-CP4B-PB	Type A – no end of line devices Type B – choice of end of line devices
Switch Type: [s]	S	SPCO/SPDT
Terminals: [t]	S	6 × 4mm² terminals
Lift flap: [l]	L	Lift flap
Cable Entry Type:[e]	A B C D E F G	3 x M20x1.5mm 2 × 1/2″ NPT – adaptors 2 × 3/4″ NPT – adaptors 2 x M25x1.5mm – adaptors 1 × 1/2″ NPT – adaptor 1 × 3/4″ NPT – adaptor 1 x M25x1.5mm – adaptor
Stopping plug material: [m]	B N P S	Brass Nylon Nickel Plated Brass Stainless Steel
Duty label / Equipment tag: [d]:	1 2 3 4 5 6 7	No Duty label, no Equip. tag Duty label Stainless Steel Duty label St/St + Equip. tag Duty label Metalised Polyester Duty label M. Poly. + Equip. tag Equip. tag only Special label requirement
Product version: [v]	A1	IECEx & ATEX approved
Enclosure colour: [x]	R, B, N, Y, V, S, K, M, Z	Red, Blue, Green, Yellow Red/White, Yellow/Black, Black, Magenta, Red/Black
E.O.L.Module: [Exxx] optional	ExxxR	Resistor value in Ohms e.g. E470R = 470 Ohm (only required for IS-CP4B type)
Series Module: [Sxxx] optional	SxxxR	Resistor value in Ohms e.g. E1K5R = 1.5K Ohm (only required for IS-CP4B type)
Accessories:	SP65-0001-A2 SP65-0001-A4 SP65-0002-A2 SP65-0002-A4	Pole Mount Bracket Kit 2″ St/St A2 (304) Pole Mount Bracket Kit 2″ St/St A4 (316) Sunshade – St/St A2 (304) Sunshade – St/St A4 (316)

IS-CP4APBSSLA
IS-CP4APBSSLB
IS-CP4APBSSLC
IS-CP4APBSSLD
IS-CP4APBSSLE
IS-CP4APBSSLF
IS-CP4APBSSLG
IS-CP4BPBSSLA
IS-CP4BPBSSLB
IS-CP4BPBSSLC
IS-CP4BPBSSLD
IS-CP4BPBSSLE
IS-CP4BPBSSLF
IS-CP4BPBSSLG
