E2S IS-CP4-PT 手动呼叫按钮

2021-07-26

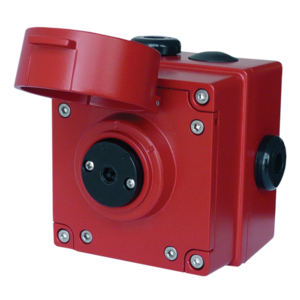

E2S IS-CP4-PT Push Button Tool Reset Call Point 手动呼叫按钮

E2S IS-CP4-PT 按钮、工具可重置、手动呼叫点专为最恶劣的环境而设计，并获准用于需要危险区域本质安全设备来控制火和气体的 0、1、2、21 和 22 区报警系统。SIL2 符合 IEC61508 (2010)。IS-CP4 系列的外壳采用防腐蚀、航海级、无铜 LM6 (A413) 铝制成，经过铬酸盐和粉末涂层处理。提供带和不带监控电阻的所有版本均通过 IECEx 和 ATEX 标准认证，并获得额外的 INMETRO 和 Ex EAC 认证。按钮机构由弹簧加载盖保护，因此开关需要两个动作激活。IS-CP4-PT 可由用户通过使用随设备提供的特殊键重新设置。

Option:	Code:	Description:
Type:	IS-CP4A-PT IS-CP4B-PT	Type A – no end of line devices Type B – choice of end of line devices
Switch Type: [s]	S	SPCO/SPDT
Terminals: [t]	S	6 × 4mm² terminals
Lift flap: [l]	L	Lift flap
Cable Entry Type:[e]	A B C D E F G	3 x M20x1.5mm 2 × 1/2″ NPT – adaptors 2 × 3/4″ NPT – adaptors 2 x M25x1.5mm – adaptors 1 × 1/2″ NPT – adaptor 1 × 3/4″ NPT – adaptor 1 x M25x1.5mm – adaptor
Stopping plug material: [m]	B N P S	Brass Nylon Nickel Plated Brass Stainless Steel
Duty label / Equipment tag: [d]:	1 2 3 4 5 6 7	No Duty label, no Equip. tag Duty label Stainless Steel Duty label St/St + Equip. tag Duty label Metalised Polyester Duty label M. Poly. + Equip. tag Equip. tag only Special label requirement
Product version: [v]	A1	IECEx & ATEX approved
Enclosure colour: [x]	R, B, N, Y, V, S, K, M, Z	Red, Blue, Green, Yellow Red/White, Yellow/Black, Black, Magenta, Red/Black
E.O.L.Module: [e] optional	ExxxR	Resistor value in Ohms e.g. E470R = 470 Ohm (only required for IS-CP4B type)
Series Module: [s] optional	SxxxR	Resistor value in Ohms e.g. E1K5R = 1.5K Ohm (only required for IS-CP4B type)
Accessories:	SP65-0001-A2 SP65-0001-A4 SP65-0002-A2 SP65-0002-A4	Pole Mount Bracket Kit 2″ St/St A2 (304) Pole Mount Bracket Kit 2″ St/St A4 (316) Sunshade – St/St A2 (304) Sunshade – St/St A4 (316)

IS-CP4APTSSLA
IS-CP4APTSSLB
IS-CP4APTSSLC
IS-CP4APTSSLD
IS-CP4APTSSLE
IS-CP4APTSSLF
IS-CP4APTSSLG
IS-CP4BPTSSLA
IS-CP4BPTSSLB
IS-CP4BPTSSLC
IS-CP4BPTSSLD
IS-CP4BPTSSLE
IS-CP4BPTSSLF
IS-CP4BPTSSLG
