E2S SONF1 报警喇叭

2021-07-29

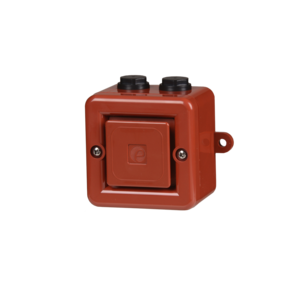

E2S SONF1 Alarm Horn Sounder 报警喇叭

E2S SONF1 是一款紧凑型、高输出、103dB(A) 警报发声器。坚固的阻燃外壳中的低电流消耗和高 SPL 确保它适用于一般信号应用，包括消防、安全和过程控制。Sonora 系列为消防、工业、过程控制和机器安全应用提供紧凑的视听信号。该系列具有低电流消耗和高性能的特点。SONF1 提供两种声级输出，符合 CPR 标准，通过 EN54-3 测试，可用于火警警报。

• 自动同步
• 连续评级
• 带和不带安装凸耳的后箱选项
• 双 M20、1/2″NPT 间隙电缆入口选项
• 重复的电缆终端
• 防护等级 IP66 3R/13 型
• 10 个警报音频率，带有第二个远程激活警报阶段
• 可提供自定义音调配置和频率
• 二极管极化用于监控电路

Variable:	Identifier:	Description:
Product type:	SONF1	Alarm horn sounder
Voltage:	DC024 AC024 AC115 AC230	24Vdc (10-30Vdc) 24Vac 50/60Hz 115Vac 50/60Hz 230Vac 50/60Hz
Back box/cable entries: [e]	M S	Back box with mounting lugs – 2 x M20/1/2″NPT clearance Back box without mounting lugs – 2 x M20, 1/2″NPT clearance
Stopping plug material: [m]	A	ABS
Equip. tag/Duty label: [s]	0 1 2	No equip. tag or Duty label 316 (A4) St/St Equip. tag/Duty label Metalised Polyester Equip. tag/Duty label
Product version: [v]	A M	UL/cUL, CPR, RMRS, EAC, CE, UKCA MED, CPR, RMRS, EAC, CE, UKCA
Product option: [o]	1 X Z	Standard product Custom configuration – contact E2S Custom alarm tone software – contact E2S
Enclosure: [x]	R G W	Red (RAL 3000) Grey (RAL7038) White

SONF1DC024MA0A1R
SONF1DC024MA0M1R
SONF1DC024MA1M1R
SONF1DC024MA1A1R
SONF1DC024MA2A1R
SONF1DC024MA2M1R
SONF1DC024SA0A1R
SONF1DC024SA0M1R
SONF1DC024SA1M1R
SONF1DC024SA1A1R
SONF1DC024SA2A1R
SONF1DC024SA2M1R
