E2S SONFL1H 声光报警器

2021-07-30

E2S SONFL1H Alarm Horn Sounder & LED Beacon 声光报警器

E2S SONFL1H 具有 100dB(A) SONF1 警报喇叭发声器与 L101H LED 信标相结合。紧凑、坚固的外壳是所有通用信号应用的理想选择,包括消防、安全和过程控制。18 个高输出 LED 阵列产生超过 113 坎德拉的光输出,用户可以将其设置为稳定模式或七种闪烁模式。发声器和信标可以从单个电源连接以同时操作,也可以从单独的电源连接以进行独立操作。

  • 自动同步
  • 连续评级
  • 带和不带安装凸耳的后箱选项
  • 双 M20、1/2″NPT 间隙电缆入口选项
  • 重复的电缆终端
  • 防护等级 IP66 3R/13 型
  • 7 种用户可选的闪光率和稳定模式
  • 10 个警报音频率,带有第二个远程激活警报阶段
  • 可提供自定义音调配置和频率
  • 用于监控电路的极化二极管
Variable: Identifier: Description:

Product type: SONFL1H Combined alarm horn sounder & LED beacon
Voltage: DC024
AC024
AC115
AC230
12Vdc (10-14Vdc)/24Vdc (20-28Vdc)
24Vac 50/60Hz
115Vac 50/60Hz
230Vac 50/60Hz
Back box/cable entries: [e] M Back box with mounting lugs – 2 x M20, 1/2″NPT clearance
Stopping plug material: [m] A ABS
Equip. tag/Duty label: [s] 0
1
2
No equip. tag or Duty label
316 (A4) St/St Equip. tag/Duty label
Metalised Polyester Equip. tag/Duty label
Product version:
[v]
A UL/cUL, RMRS, EAC, CE, UKCA
Product option:
[o]
1
X
Z
Standard product
Custom configuration – contact E2S
Custom alarm tone software – contact E2S
Enclosure: [x] R
G
W
Red (RAL 3000)
Grey (RAL7038)
White
Lens colour: [y] A
B
C
G
M
R
Y
Amber
Blue
Clear
Green
Magenta
Red
Yellow

SONFL1HDC024MA0A1R/R
SONFL1HDC024MA1A1R/R
SONFL1HDC024MA2A1R/R
SONFL1HAC115MA0A1R/R
SONFL1HAC115MA1A1R/R
SONFL1HAC115MA2A1R/R
SONFL1HAC230MA0A1R/R
SONFL1HAC230MA1A1R/R
SONFL1HAC230MA2A1R/R

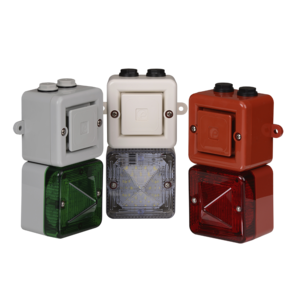

Product image
