E2S SONFL1X-HO 高输出声光报警器

2021-07-30

E2S SONFL1X-HO High Output Alarm Horn & Xenon Strobe 高输出声光报警器

E2S SONFL1X-HO 具有 105dB(A) SONF1-HO 警报喇叭发声器与 L101X 氙气闪光灯信标相结合。紧凑、坚固的外壳是所有通用信号应用的理想选择,包括消防、安全和过程控制。5 焦耳氙气闪光灯可产生超过 200 坎德拉的光输出。DC 版本具有多种闪速可选 udring 安装。发声器和信标可以从单个电源连接以同时操作,也可以从单独的电源连接以进行独立操作。

  • 自动同步
  • 连续评级
  • 带和不带安装凸耳的后箱选项
  • 双 M20、1/2″NPT 间隙电缆入口选项
  • 重复的电缆终端
  • 防护等级 IP66 3R/13 型
  • 3 种用户可选的闪光率
  • 10个报警音频率
  • 可提供自定义音调配置和频率
  • 用于监控电路的极化二极管
Variable: Identifier: Description:

Product type: SONFL1X Combined alarm horn sounder & Xenon strobe
Voltage: DC012
DC024
12Vdc (10-14Vdc)
24Vdc (20-28Vdc)
Back box/cable entries: [e] M Back box with mounting lugs – 2 x M20, 1/2″NPT clearance
Stopping plug material: [m] A ABS
Equip. tag/Duty label: [s] 0
1
2
No equip. tag or Duty label
316 (A4) St/St Equip. tag/Duty label
Metalised Polyester Equip. tag/Duty label
Product version:
[v]
A CPR, RMRS, EAC, CE, UKCA
Product option:
[o]
1
X
Z
Standard product
Custom configuration – contact E2S
Custom alarm tone software – contact E2S
Enclosure: [x] R
G
W
Red (RAL 3000)
Grey (RAL7038)
White
Lens colour: [y] A-H
B-H
C-H
G-H
M-H
R-H
Y-H
Amber
Blue
Clear
Green
Magenta
Red
Yellow

SONFL1XDC012MA0A1R/R-H
SONFL1XDC012MA1A1R/R-H
SONFL1XDC012MA2A1R/R-H
SONFL1XDC024MA0A1R/R-H
SONFL1XDC024MA1A1R/R-H
SONFL1XDC024MA2A1R/R-H

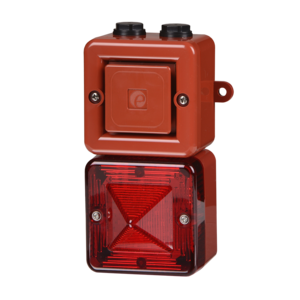

Product image
