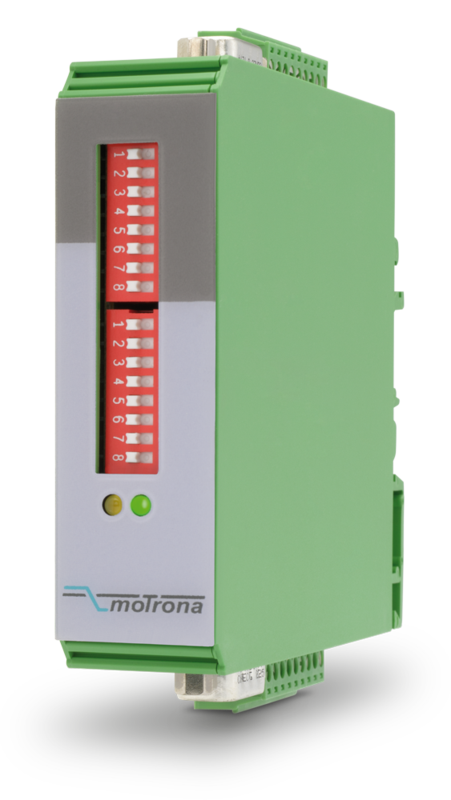

Motrona PU210 Signal Converter 信号转换器
2025-11-05
Motrona PU Series Signal Converter, HTL, RS-422, TTL Input, HTL, RS-422, TTL Output, 5 → 30V dc Supply
PU210: Universal Level Converter and Direction Decoder
- 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
- Input frequency up to 500 kHz
- 1 pulse output with format A, /A, B, /B, Z, /Z [RS422, HTL]
- Power supply 5 … 30 VDC
- Potential separation between input and output
- Possibility to convert A, B / 90 ° directional information into static directional signal and vice versa
- Connections on the input as well as on the output either via sub-D plugs or plug-in screw terminals (parallel connections)
- Snap-on housing for top hat rail
(according to EN 60715)
